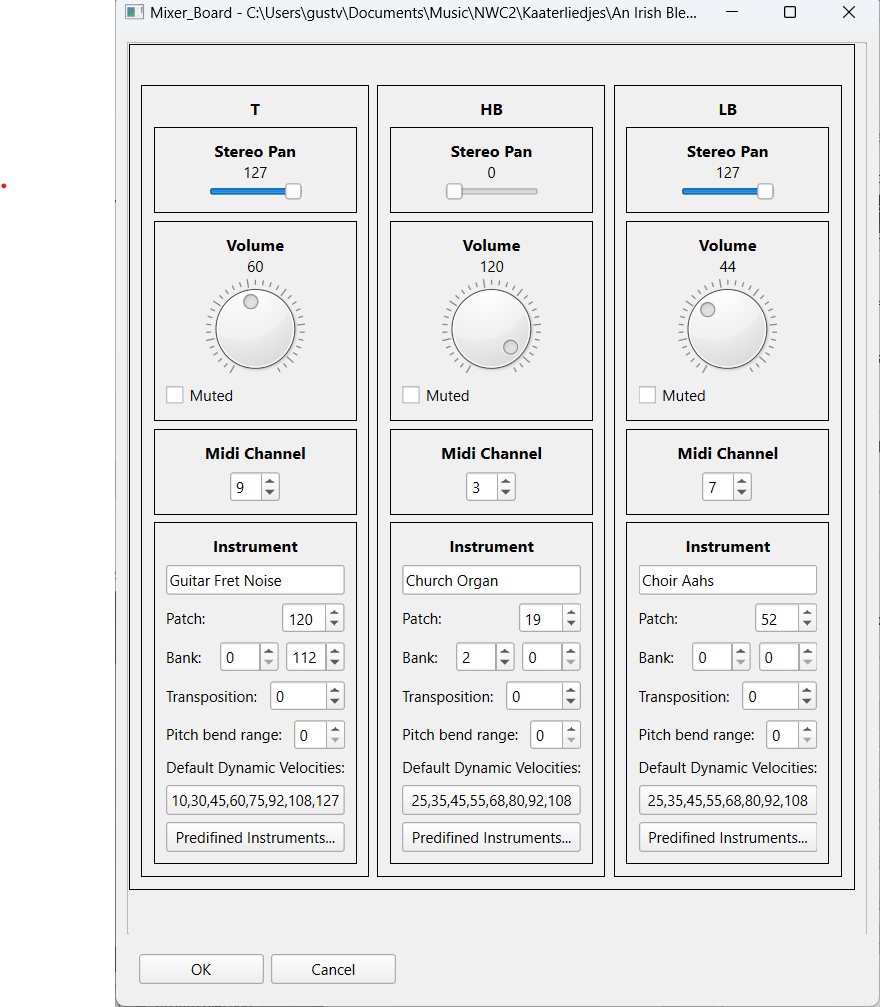

MIXER BOARD

This tool opens a mixer board, which contains, for each staff, various controls to change following properties:

Stereo Pan, Volume, Muted, Midi Channel, Instrument Name and Patch, Predefined Instruments

Changing the Stereo Pan and Volume can be done by:

• grabbing and moving the handle of the slider
• clicking on the slider: changes the value +- 10
• pressing PgUp or PgDn: changes the value +-10
• pressing the arrow keys: changes the value +-1

Changing the instrument can be done by:

• changing the Instrument Name; if the new name is present in the set of 'Predefined Instruments', the Patch will also be changed.
• changing the Patch; it will also change the instrument name

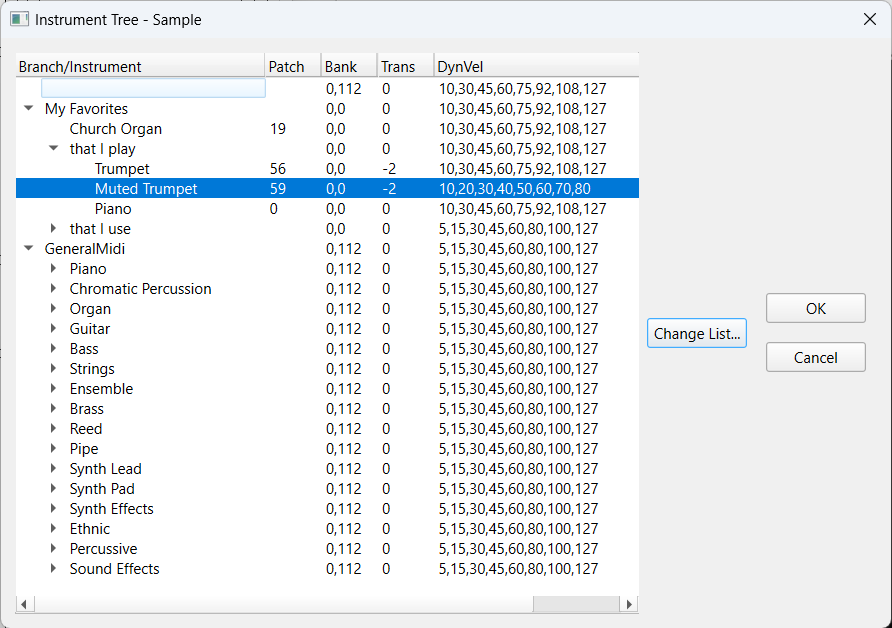

• clicking the button 'Predefined Instruments' and selecting an instrument.

Installation:

• Download the file, unzip it and copy the its full path name
• Open any file in NoteWorthy Composer
• Go to 'Tools/User Tool' or press Alt-F8
• Click 'New...'
• Choose a group or create a naw one
• Fill the Name field: 'Mixer_board'
• Fill the command line:  the full path name of the unzipped file
• Input Type: File Text
• Options: Returns File Text
